Fig.120D
Union ball valve - Degreased
General Information

ConnectionUnion ends (Tube weld)

ServiceDegreased for Oxygen

Size range1/2", 1"

PressurePN63

MaterialStainless steel 316 / PTFE

Datasheet
IOM/Manual
N/A
Compliance
3D
N/A

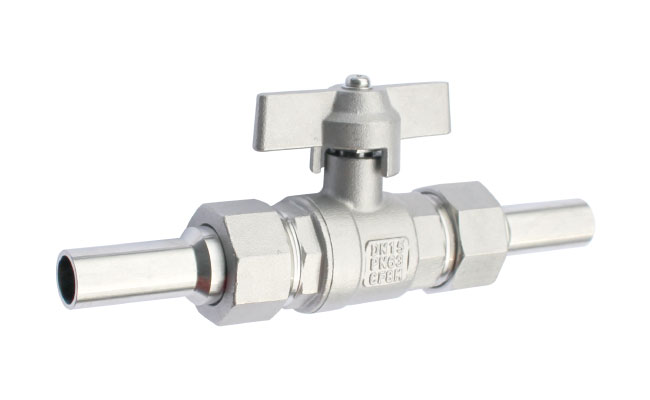

Union ball valve -  Degreased
Union ball valve -  Degreased
Union ball valve -  Degreased
Union ball valve -  Degreased
Design Features

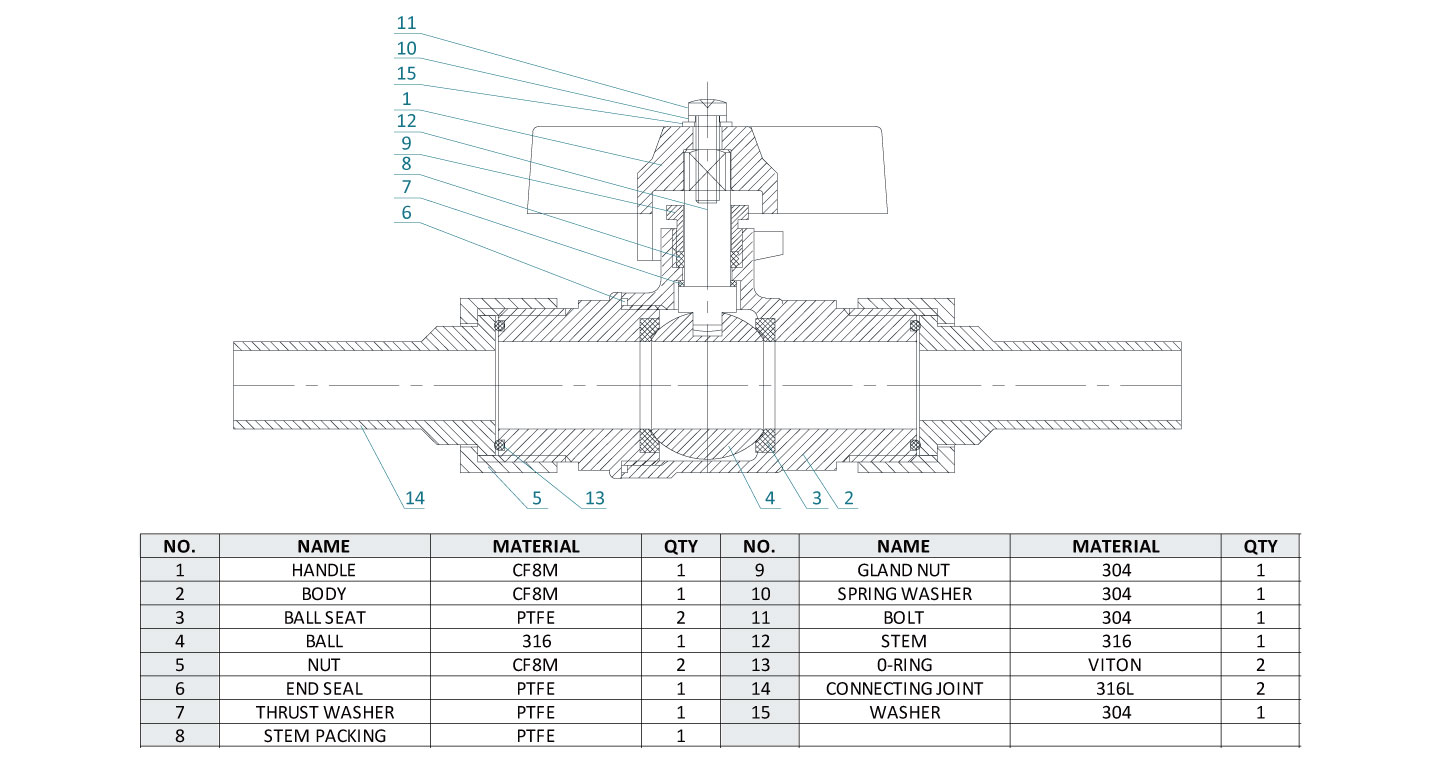

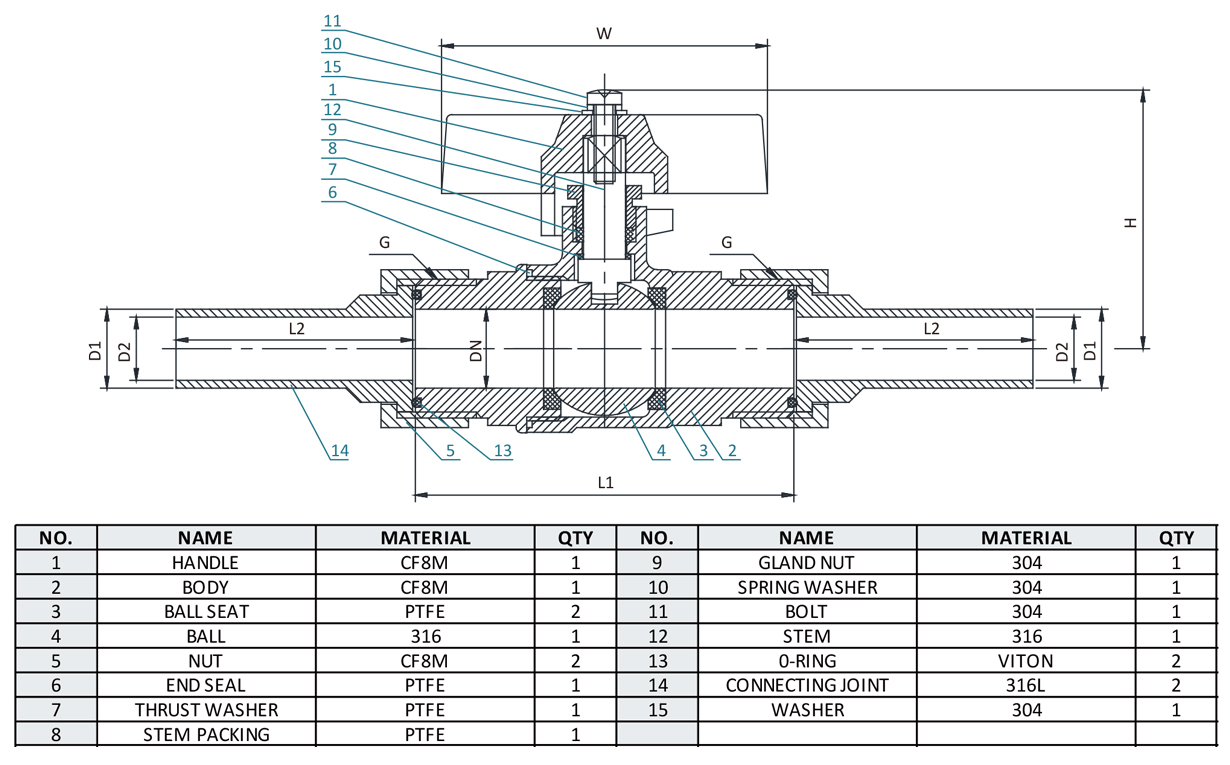

Material Part List

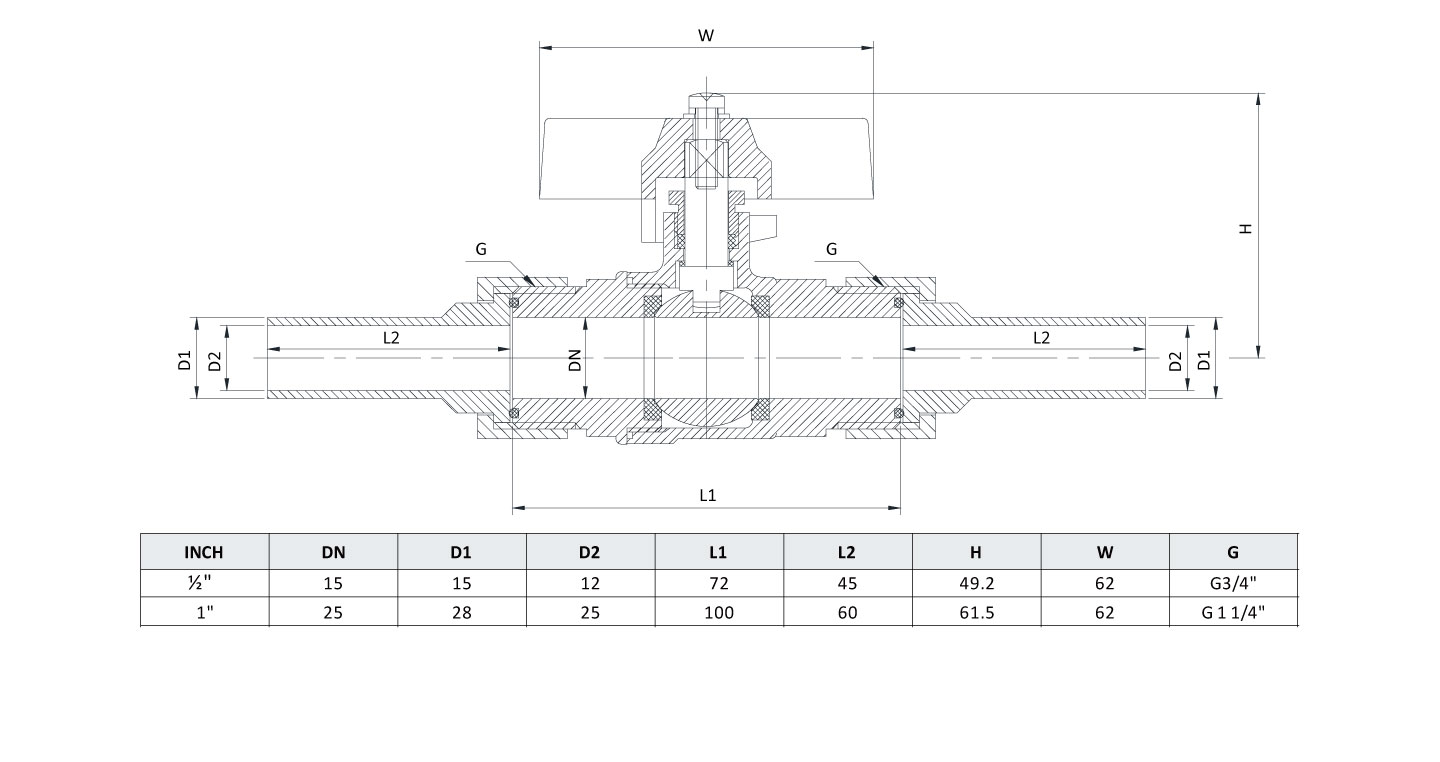

Dimensions

Coreline Fig.120D union ball valve is designed for hygienic and clean service applications requiring high purity and easy maintenance.
It features union ends for convenient installation and disassembly, with tube weld ends suitable for clean and hygienic piping systems.
The valve is degreased for oxygen service and manufactured to meet food-grade and material certification requirements.

• Union ends for easy installation and maintenance.

• Tube weld ends suitable for clean and hygienic piping systems.

• Degreased to ensure oil-free, contamination-free operation.

• FDA and EU1935/2004 food approved

• Certificate EN10204 - 3.1.
