ConnectionPN16/40 - DIN EN1092-1; ANSI150 - ASME B16.5
Size rangeDN15-DN200
Pressure ratingPN16/PN40; ANSI150
Face to facePN16/40 - EN558 series 27;
ANSI150 - ASME B16.10
BodyStainless stee 316, carbon steel
Ball/stemStainless stee 316
SeatPTFE+25% carbon. PTFE, TFM1600 on request
Valve topISO5211
RemarkFiresafe version available
Fig.150 flanged ball valve is designed for stable and reliable operation in industrial piping systems.
The valve features a solid ball design for all sizes, ensuring consistent strength and sealing performance.
Multiple flange standards are available. Please note that the PN16/PN40 valves comply with EN 558 Series 27 in face-to-face dimension.
• Wax casting with excellent surface finish.
• Full bore for better Kv value.

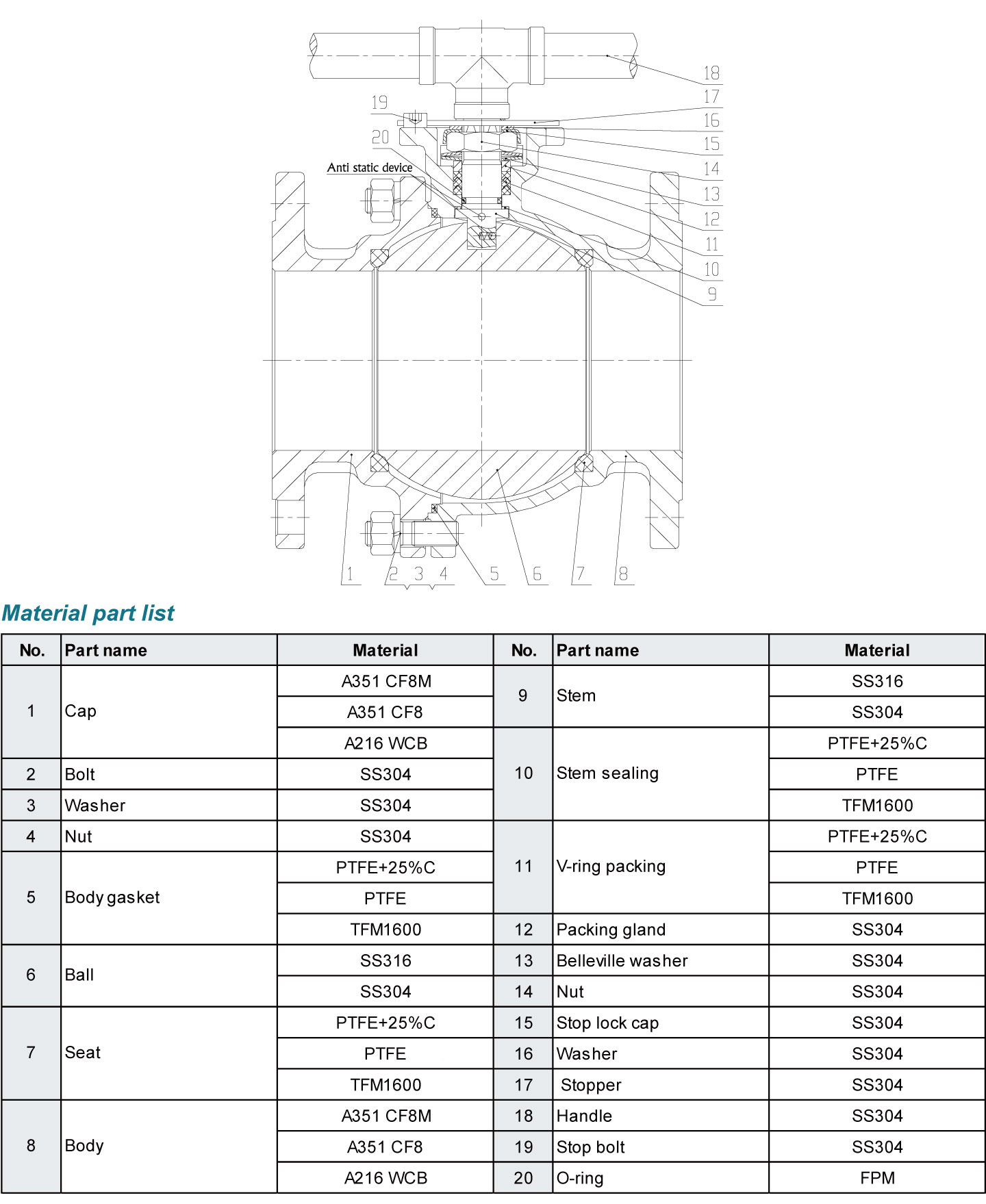

• Anti-static devices for ball - stem - body.
• Solid ball for all sizes up to DN200.
• Blow-out proof stem.
• Pressure relief hole in ball slot.

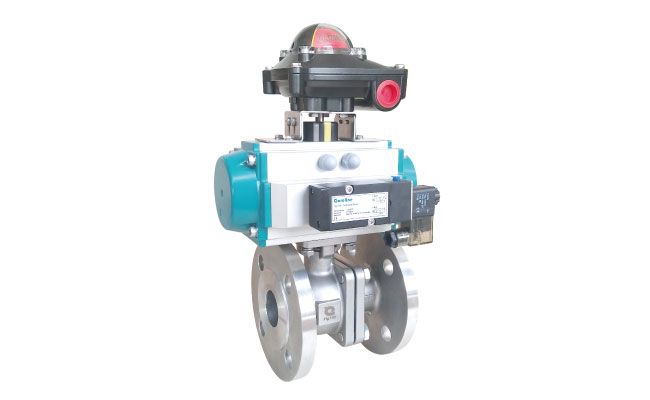

• ISO5211 direct mounting pad for easy automation.
• Standard firesafe design; firesafe certified versions upon request.
