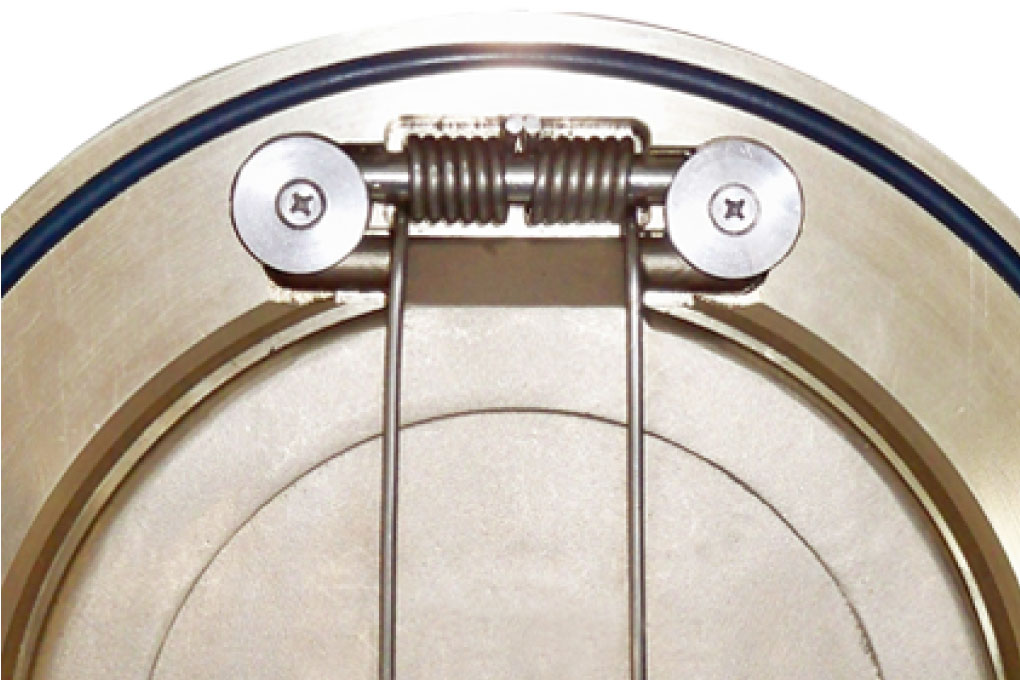

ConnectionWafer. Fig.614 without spring, Fig.615 with spring
Size rangeDN25 - DN1000
Pressure ratingPN10/16/25/40, Class150
Body/discCarbon steel, stainless steel, duplex steel, super duplex steel
SealingEPDM, NBR, FPM, PTFE, metal
Face to faceIndustrial standard
Tightness (soft seat)ANSI/FCI 70-2 - Class VI
ISO 5208 / EN 12266-1 - Rate A
API 598 - Bubble-tight

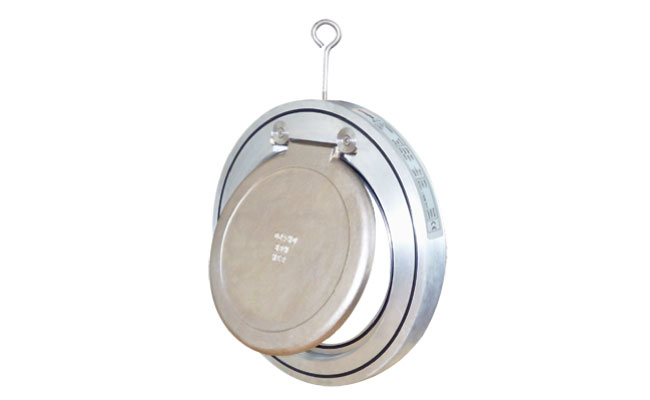

Fig.614/615 is a thin wafer check valve designed to prevent reverse flow in piping systems.
Its short face-to-face dimension allows compact installation, while precision machining ensures reliable sealing and low head loss.
The valve is suitable for both horizontal and vertical installation in a wide range of industrial applications.
High quality and reliability with certificate, robust construction and excellent finish.
Flexibility and low weight because of short face-to-face dimension.
Minimum head loss due to straight flow direction.
Resistance to aggressive media with many material options.
Self-centering over the outside diameter of body.
1-pc body design makes it easy for recycling.
Different packing options, including life loaded.
